Dental Chair Unit
KDU-A101

www.jeffmedical.com | info@jeffmedical.com

Product Description

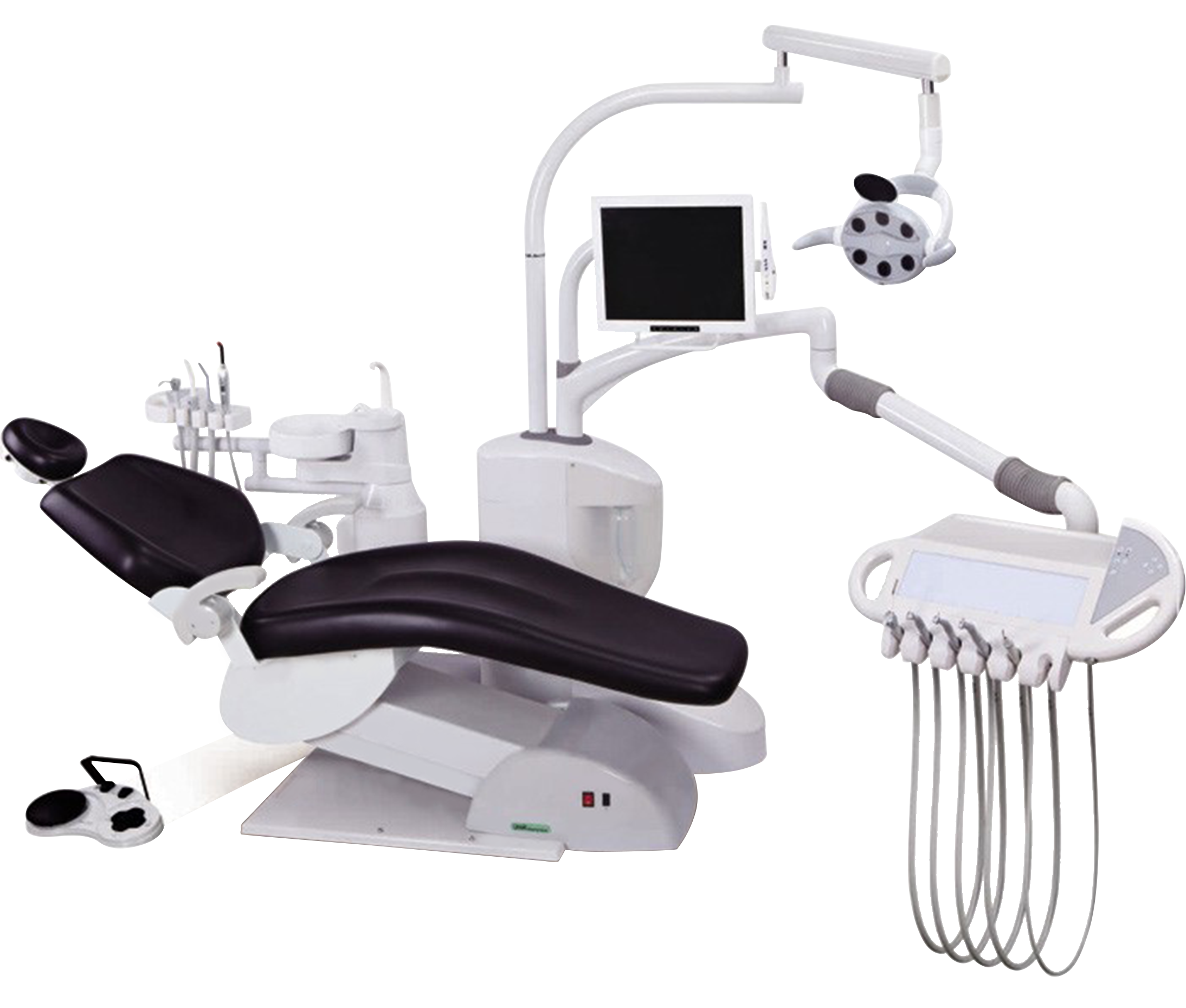

Dental Chair Unit KDU-A101 equipped with high quality chair and floor-type side box characterized by remote controller facilitate automatic control. Incorporates LED lamp, X-ray film viewer, low mounted instrument tray, suction pump system. Large seat rest designed based on human body feature give comfort to patient during operation.

Specification

Parameter	Range
Chair size	1800 × 1000 × 2000 mm
DC Motor	24 V / ≤ 3.8 A
Operation Light	12 V ; 50 VA (AC) 10 V ; 50 VA
Input Power	1100 VA
Water Supply Thermostat	230 V ; 50/60 Hz (AC)
X-Ray Film Viewer	12 VA
Instrument Tray Capacity	1.5 Kg
Power Supply	230 V ; 50/60 Hz (AC)
Weight	250 Kgs

Features

Electric control system
Single chair motor and foot pedal
Central suction system without vacuum pump
Three hand piece tube
Automated hot water supply
Two set built-in water purifier and dentist stool
One set operating light and monitor arm

Applications

Used in dental clinic for dental examinations and operations.
