Product Description

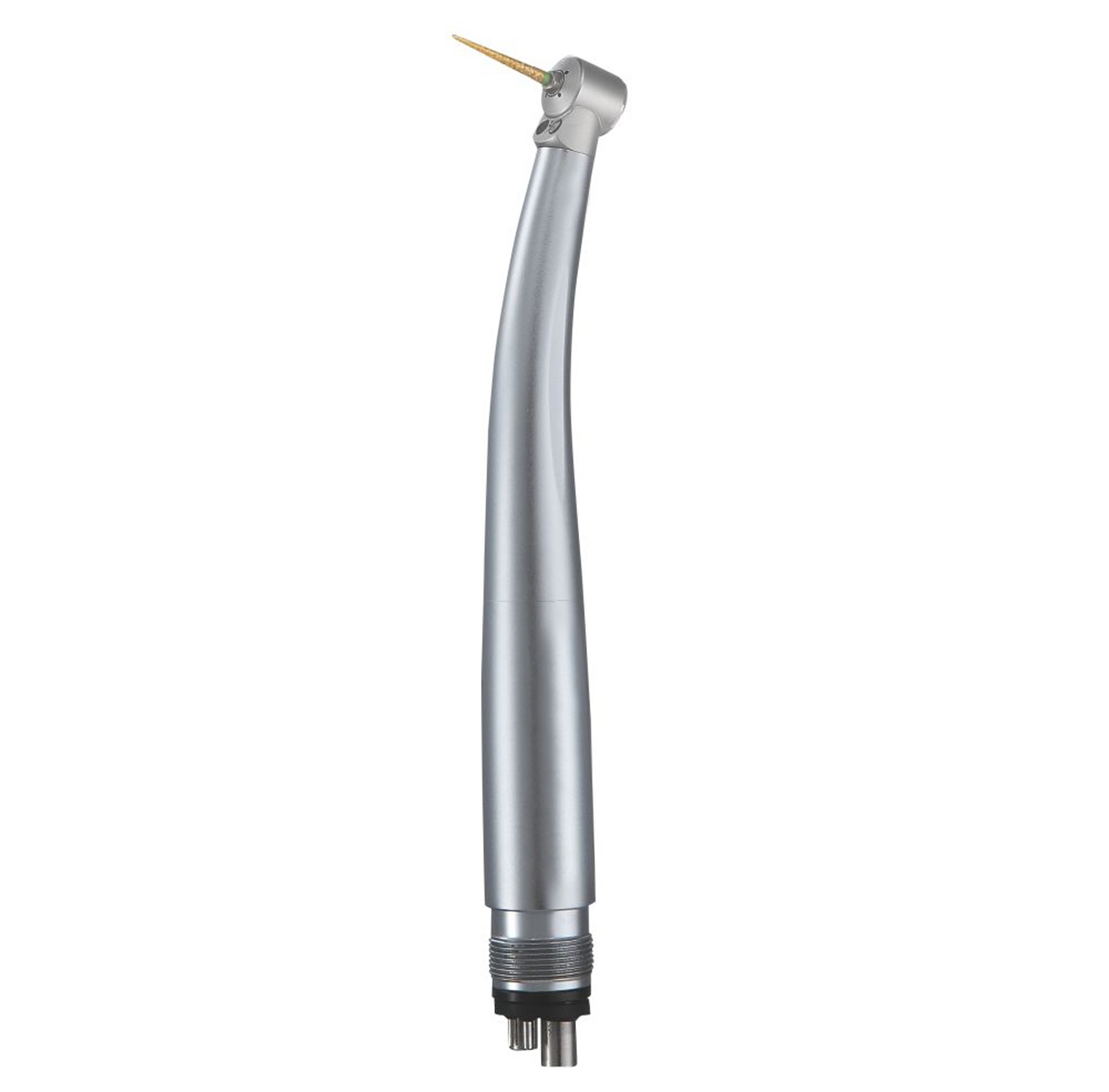

High-Speed Dental Hand piece KDH-A201 is a contra-angled air-driven dental drill instrument. High precision gears housed in miniature head design enables broader workspace. LED light illumination and single-point water spray with anti-retraction units improve scope of visibility.
Specification
| Parameter | Range |
|---|---|
| Rotation Speed | 3,80,000 rpm to 4,00,000 rpm |
| Head Size | 8.7 x 9.5 mm |
| Bur Insertion | Standard Push button |
| Gear Ratio | 1:1 |
| Drive | Air driven |
| Type of Bearing | Ceramic |
| Air Pressure | 0.25 MPa ~ 0.27 MPa (4 hole) 0.2 MPa ~ 0.22 MPa (2 hole) |
| LED Source Life | 1000 hours |
| Tubing Connection | 2 or 4 holes |
| Spray | Single-point water spray |
| Construction | Stainless steel exterior |
| Applicable Bur Size | Diameter : 1.59 mm ~ 1.6 mm Length : 21 mm ~ 23 mm |
| Cartridge | Collet-type |
| Noise | < 58 dB |
| Weight | Approx. 180 g |
Features
Applications
Used in dental clinics for preparation of tooth for various procedures primarily suitable for cavity preparation, removal of tooth structure, margin creation and finishing restorations.
